Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: SANQ
  • Model Number: HZS60
  • Power(W): 100kw
  • Dimension(L*W*H): 25000x10000x19400mm
  • Weight: appr.45 ton
  • Certification: CE, IAF
  • Warranty: 18 months after installation
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Control system: Full-automatic/semi-automatic/manual
  • Discharge height: 3800mm or (custom design
  • Capacity: 60m3/h
  • Twin shaft mixer: JS1000
  • Mixer volume: 1m3
  • Mixer power: 18.5kw*2
  • Loading type of aggregate to mixer: Conveying belt
  • Aggregate silo capacity: 9m3x 4
  • Cement screw: 219mm/273mm
  • Cement silo(optional): Bolted type, 50/100T/200T

Packaging & Delivery

Packaging Details 4 x 40HQ
Seaworthy package
Delivery Time 10-35 days

60m3/h Ready Mixed Concrete Mixing Plant, Concrete Batching Plant

Product Description

Introduction

  • HZS60 Stationary Concrete Batching Plant is also named ready mix concrete plant, mainly composed of twin shaft mixer, material weighing system, conveying system, material storage system, control system and steel structure.
  • It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
  • HZS series stationary concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast concrete plants, etc. It is an ideal choice for producing commercial concrete.
  • HZS has two feeding ways. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is often used for higher than 60m3 per hour output production.
  • For export, we adopt full automatic control system for our stationary concrete mixing plant. It is PC+PLC control, which can vividly display the production process on the screen, so that the operator can monitor whole process all the time.



Feature-- Ready Mix Concrete Plant for Sale



  • Stability from national standard structural steel.
  • Efficiency from twin shaft mixer and short cycle time.
  • Reliability from famous brand components.
  •  Quality from accurate weighing.
  • Flexibility from modular design.



  •  Easy to installation-uninstallation and operating.
  • Quick to produce from our own specially trained engineers.
  • Easy to move from compact structure.
  • Easy to maintain from the best service and parts support.
  • Easy to clean from mixer with high-pressure automatic cleaning system.



  • Less land occupation costs.
  • Less transportation costs.
  • Low noise and dust emissions.
  • Less energy consumption costs.
  • Fast return on investment.

Main Parameter

ModelHZS60
Productivity60 m³/h
Twin Shaft MixerJS1000
Mixer Volume1m³
Mixer Power18.5kw×2
Max. Aggregate Size(broken stone/pebble)60/80 mm
Loading Type of Aggregate to the MixerConverying Belt
Aggregate Storage Hopper9 m³ × 4
Aggregate Weighing4000 kg ±2%
Fly Ash Weighing400 kg ±2%
Cement Weighing600 kg ±1%
Water Weighing300 kg ±1%
Additive Weighing30 kg ±1%
Control ModeFull-automatic / Semi-automatic / manual
Total Weight45000 kg (excluding optional parts)
Site Size (L X W X H) (at work)25000 mm × 10000 mm × 19400 mm
Cement Screw ConveyorLSY219/ LSY273
Cement silo(optional)Bolted tyep: 50T/100T/200T



Accessories



Technical Process

  • HZS series concrete batching plant consists of aggregate batching system, concrete mixing system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc.
  • All aggregates are fed into the aggregate batching machine by loader, and weighed in the weighing hopper or weighing belt. After weighing, they are transported to a hopper or a belt, and then the aggregates are transported to the mixer for mixing.
  • Cement is conveyed into the cement weighing hopper by screw conveyor for weighing, after weighing, cement is poured into mixer.
  • Water is pumped into water weighing hopper by water pump. After weighing, water is sent into the mixer.
  • After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce concrete.

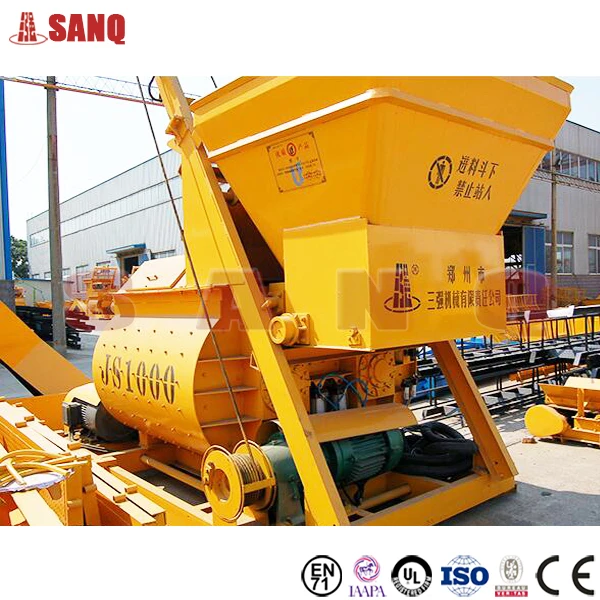

1. JS1000 Twin Shaft Mixer
2. PLD2400 Batch Machine
3. Belt Conveyor

4. LSY Cement Screw Conveyor

5. Control System





Packaging & Shipping





Our Services

1-After-Sales Service

SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.

  • 24 hours on line sercvice
  • Regular after-sale visit
  • All after -sale service problem will be solved in 72 hours
  • Accessories gloabally supply
  • Lifetime technique suport
  • Enginnerserve overseas avaiable
2-Spare Parts And Service
Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.
SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
