50 Unit/Units per Month Construction Concrete Equipment
Packaging & Delivery
Standard Export Packing & Load In 40HQ Containers for Concrete Mixing Plant
Qingdao/Tianjin/Shanghai Port in china
25 Days Since Down Payment for Concrete Mixing Plant
Capacity 150m3/h Ready Mixed Construction Concrete Equipment;

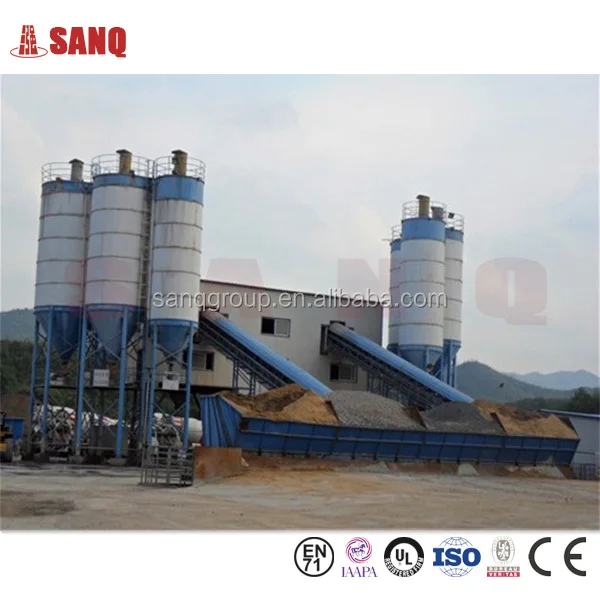

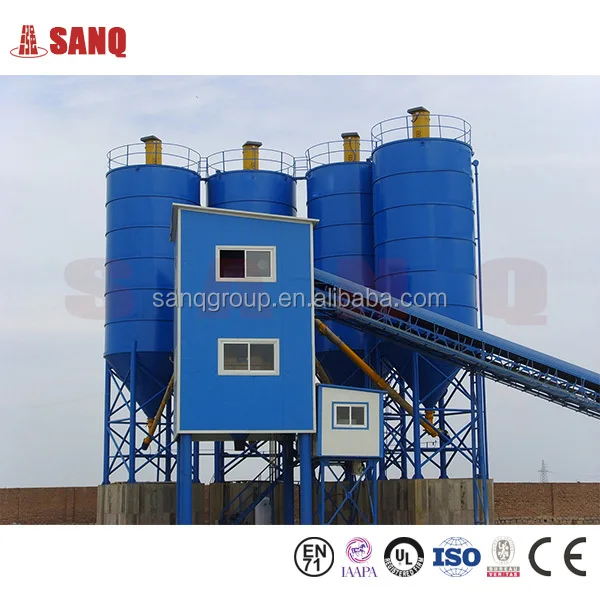

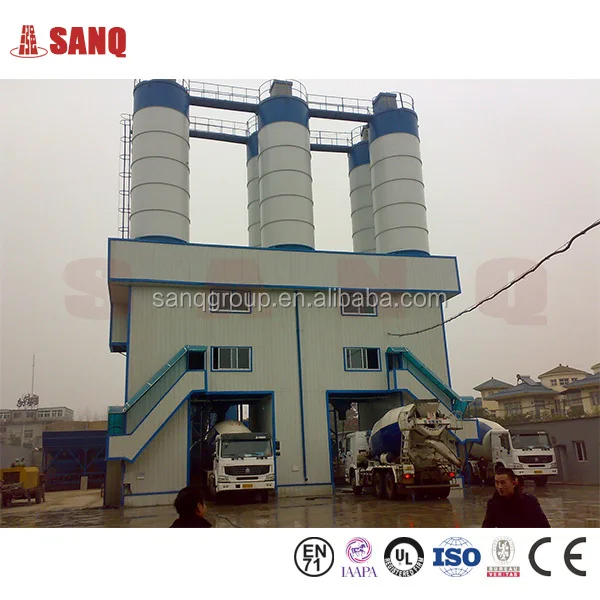

HZS180 Stationary Concrete Batching Plant is also named ready mix concrete plant, mainly composed of twin shaft mixer, material weighing system, conveying system, material storage system, control system and steel structure.
It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
HZS series stationary concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast concrete plants, etc. It is an ideal choice for producing commercial concrete.
HZS has two feeding ways. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is often used for higher than 60m3 per hour output production.
For export, we adopt full automatic control system for our stationary concrete mixing plant. It is PC+PLC control, which can vividly display the production process on the screen, so that the operator can monitor whole process all the time.
Twin Shaft Mixer
Max. Aggregate Size(broken stone/pebble)
Loading Type of Aggregate to the Mixer
Aggregate Storage Hopper
18 m³ × 4
6000 kg ±2%
Fly Ash Weighing
600 kg ±2%
1500 kg ±1%
500 kg ±1%
50 kg ±1%
Full-automatic / Semi-automatic / manual
80000 kg (excluding optional parts)
Site Size (L X W X H) (at work)
45000 mm × 17000 mm × 20000 mm
Cement Screw Conveyor
Bolted tyep: 50T/100T/200T
HZS series concrete batching plant consists of aggregate batching system, concrete mixing system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc.
All aggregates are fed into the aggregate batching machine by loader, and weighed in the weighing hopper or weighing belt. After weighing, they are transported to a hopper or a belt, and then the aggregates are transported to the mixer for mixing.
Cement is conveyed into the cement weighing hopper by screw conveyor for weighing, after weighing, cement is poured into mixer.
Water is pumped into water weighing hopper by water pump. After weighing, water is sent into the mixer.
After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce concrete.
1. JS3000 Twin Shaft Mixer
2. PLD3200-4 Batch Machine
3. Belt Conveyor
4. LSY Cement Screw Conveyor
5. Control System

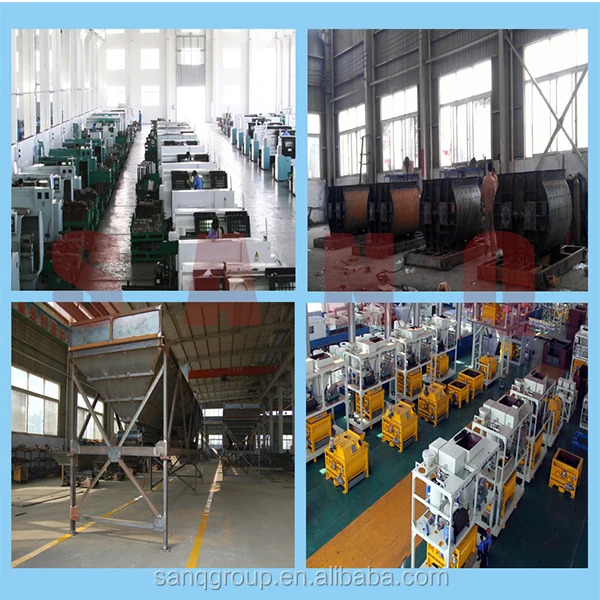

Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.
Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.

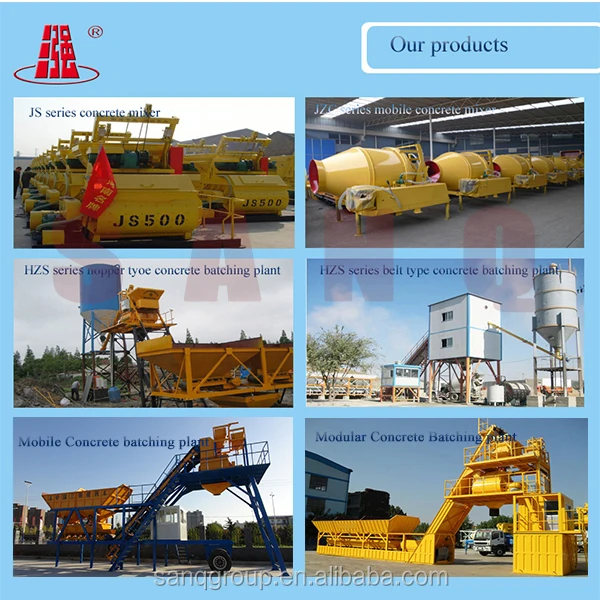

Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India Iran, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.
Zhengzhou Sanqgroup Machinery & Equipment Co., Ltd. is a production and sales enterprise, the company's business is flourishing now, mainly due to our energetic team.
Technology team is consisted of 11 persons, 3 are senior engineers, 8 are engineers. The average age is about 35 years old. 2 are doctor degree, 4 are master degree and 5 are bachelor degree
Sales team is composed of 15 persons, 10 for English market, 5 for Russian market. 80% is Bachelor and 20% is junior college. The average age is 26 years old. It is a highly educated, high-quality, young and energetic team.
Workers are divided into general worker and skilled worker. All skilled workers have some certificates for technical proficiency with work experience from 2 to 20 years. All general workers will be strictly trained by skilled worker after recruit according to their post for 2-3 weeks and then can operate after passing examination.
SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.
24 hours on line sercvice
Regular after-sale visit
All after -sale service problem will be solved in 72 hours
Accessories gloabally supply
Lifetime technique suport
Enginnerserve overseas avaiable
2-Spare Parts And Service
Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.
SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
Q: How many days it need to install the concrete batching plant?
A: In general,it takes 2 weeks to istall the concrete batching plant.
Q: What will be total cycle time-feeding of material,mixing of material,discharging of concrete mix?(we believe that water,admixture,cement & fly ash are also poured parallely while feeding material)
A: The cycle time is 120 seconds
Q: What about water & admixture feeding ?
A: There is an annular pipe for water or admixture feeding.
Q: How to feed aggregates?
A: It can feed aggregates by skip hopper or by belt conveyor.The small plant,like 25 m3/h,35 m3/h,and 50 m3/h,feeds aggregates by skip hopper.The big plant,whose capacity is higher than 60 m3/h, feed aggregates by belt conveyor.
Q: Can we equip the Sicoma type mixer onto the plant?
A: Of course,if you need ,we can equip the Sicoma type for you,and Sicoma have the biggest manufacturing base in China and we have cooperated with Sicoma for many years,so we have very good price.
