Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: China (Mainland)
  • Brand Name: SANQ
  • Model Number: YHZS35 Used Mobile Concrete Batching Plants
  • Power(W): 65kw
  • Dimension(L*W*H): 14500x4050x7600mm
  • Weight: appr.15 ton
  • Certification: CE, IAF
  • Warranty: 18 months after installation
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Control system: Full-automatic/semi-automatic/manual
  • Discharge height: 2800mm or (custom design)
  • Capacity: 25m3/h
  • Twin shaft mixer: JS750
  • Mixer volume: 0.75m3
  • Mixer power: 30kw
  • Loading type of aggregate to mixer: Conveying belt
  • Aggregate silo capacity: 4m3x 2
  • Cement screw: 219mm
  • Cement silo(optional): Bolted type, 50/100T

Packaging & Delivery

Packaging Details 2 x 40HQ
Seaworthy package
Delivery Time 10-35 days

Capacity 35 Cubic Per Hour Used In Small Sized Mobile Concrete Batching Plants





1-Introduction



  • YHZS series mobile concrete mixing plant is a movable equipment, which is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc.



  • YHZS series mobile concrete mixing plant has two different structures, one is hauling type, and the other is modular type.



  • Hauling type mobile concrete mix plant adopts the semi-pulling design. With running system and standard traction pin, YHZS series hauling type mobile concrete mix plant can be dragged by a tractor, which enables convenient and quick movement and installation without foundation and debugging. It takes only one day from installation to operation.



  • Modular type mobile mixing plant adopts modular design without foundation and debugging, which enables convenient and quick installation. It takes only three to five days from installation to operation. For convenient long distance transportation, the mobile ready mixed concrete plant can be divided into several standard modules, and then be packed into containers.









Parameter:





ModelYHZS35
Productivity35 m³/h
Twin Shaft Mixer JS750
Mixer Volume 0.75 m³
Mixer Power30kw
Max. Aggregate Size(broken stone/pebble)60/80mm
Loading Type of Aggregate to the MixerConveyor Belt
Aggregate Storage Hopper4 m³  * 2
Aggregate Weighing2000kg±2%
Cement Weighing300kg±1%
Water Weighing 200kg±1%
Additive Weighing25kg±2%
Control ModeFull-automatic/Semi-automatic/ manual
Discharge Height3800mm
Total Power65kw
Total Weight15000kg (except cement silo and screw)
Site Size (L * W* H) (at work)14500 mm * 40500 mm *7600mm
Cement ScrewLSY219
Cement siloWeled or Bolted Type: 50/100T



Feature:



2-Feature



  • Special Designed Compact Structure.
  • Hauling System for Easy Move.
  •  Fast and Easy Installation and Dis-assembly.
  • Twin Shaft Forced Type Concrete Mixer
  • Operated Manually, Semi-automatically and Full-automatically.
  • Comprehensive Function (unique storage ratio, self compensation of aggregates drop, alarming of over scale, online modifying formula, etc.)













 3- Technical Process

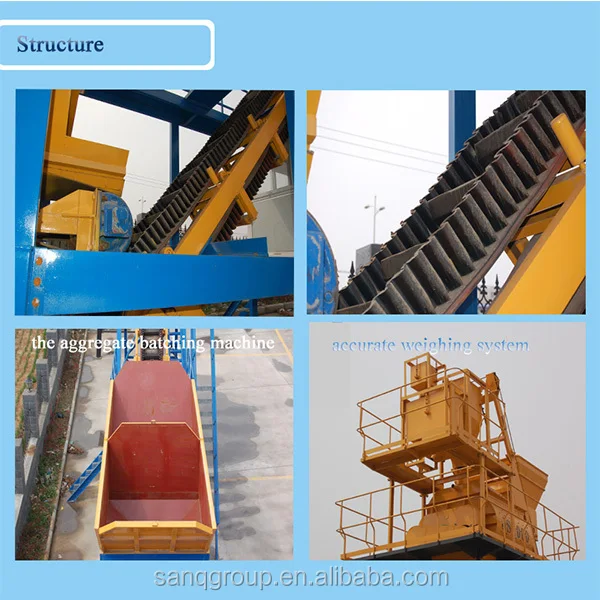

  • YHZS series mobile concrete mixing plant consists of aggregate batching system, concrete mixing system, walking system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc.
  • All aggregates are fed into the aggregate batching machine by loader, and they are weighed on a belt or in a weighing hopper. After weighing, the aggregates are dropped to belt conveyor and transported to the concrete mixer by belt conveyor.



  • Cement is sent into the cement weighing hopper by screw conveyor. After weighing, cement is dropped into the cement mixer.



  • Water is pumped into the water weighing hopper by water pump. After weighing, water is dropped into the mixer.



  • After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce fresh concrete.

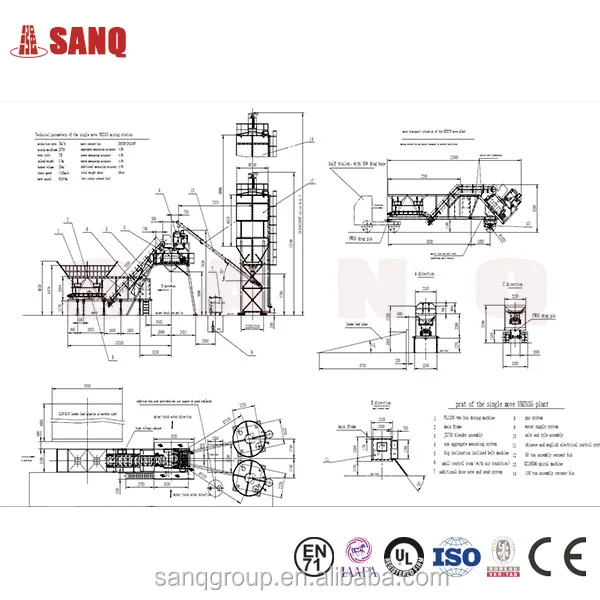

4-Design drawing


Company Information



1-Indtroduction



  • Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.



  • Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.



  • Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India Iran, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.












2-Our Team --ready mixed concrete batching plant

Zhengzhou Sanqgroup Machinery & Equipment Co., Ltd. is a production and sales enterprise, the company's business is flourishing now, mainly due to our energetic team.

  • Technology team:

Technology team is consisted of 11 persons, 3 are senior engineers, 8 are engineers. The average age is about 35 years old. 2 are doctor degree, 4 are master degree and 5 are bachelor degree.

  • Sales team:

Sales team is composed of 15 persons, 10 for English market, 5 for Russian market. 80% is Bachelor and 20% is junior college. The average age is 26 years old. It is a highly educated, high-quality, young and energetic team.

  • Production Team:

Workers are divided into general worker and skilled worker. All skilled workers have some certificates for technical proficiency with work experience from 2 to 20 years. All general workers will be strictly trained by skilled worker after recruit according to their post for 2-3 weeks and then can operate after passing examination.

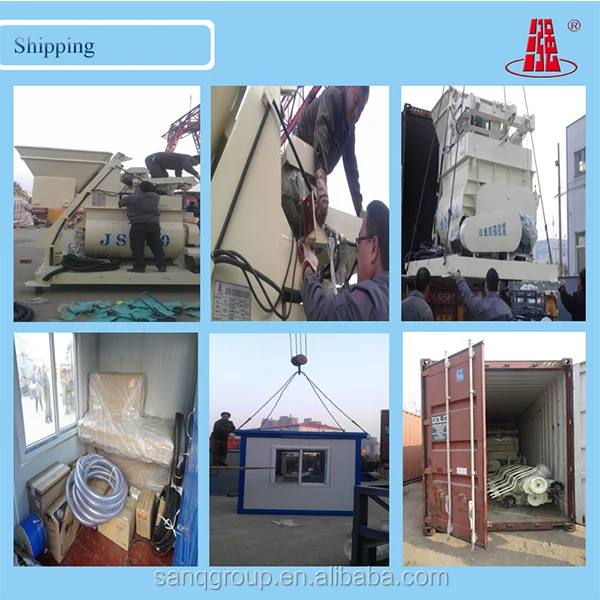

Packaging & Shipping

 Export standard container-20GP or 40GP, 40HQ,FR container in bulk, the spare parts in wooden or iron case according to the size and weight.




Certifications











Our Services



1-After-Sales Service--ready mixed concrete batching plant

SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.

  • 24 hours on line sercvice
  • Regular after-sale visit
  • All after -sale service problem will be solved in 72 hours
  • Accessories gloabally supply
  • Lifetime technique suport
  • Enginnerserve overseas avaiable
2-Spare Parts and Service--ready mixed concrete batching plant
Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.
SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
