Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: SANQ
  • Model Number: HZS50
  • Power(W): 70kw
  • Dimension(L*W*H): 18200 mm *10000 mm * 19400 mm
  • Weight: 18 t
  • Certification: GOST,CE , ISO9001:2008
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 50 m3/h
  • Twin Shaft Mixer: JS1000
  • Mixer volume: 1 m3
  • Max. Aggregate Size(broken stone/pebble): 60 / 80 mm
  • Loading Type of Aggregate to the Mixer: Skip Hopper
  • Aggregate Silo Capacity: 4.5 m3 *4
  • Aggregate Weighing: 3000 kg ±2%
  • Cement Weighing: 500 kg ±1%
  • Water Weighing: 300 kg ±1%
  • Additive Weighing: 30 kg ±1%

Packaging & Delivery

Packaging Details 3 units 40'HQ containers according to the model size, wooden-box with the size of 60cm*60cm*60cm will be used for small items like bolt, nult, screw etc.
Delivery Time within 15-20 working days after receiving your advanced paymen

Concrete Mixing Plant For Small Construction Projects

Product Description
1-Introduction--  Concrete Batch Plant For Sale

  • HZS Stationary Concrete Batching Plant is also named ready mix concrete plant, mainly composed of twin shaft mixer, material weighing system, conveying system, material storage system, control system and steel structure.
  • It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
  • HZS series stationary concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast concrete plants, etc. It is an ideal choice for producing commercial concrete.
  • HZS has two feeding ways. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is often used for higher than 60m3 per hour output production.
  • For export, we adopt full automatic control system for our stationary concrete mixing plant. It is PC+PLC control, which can vividly display the production process on the screen, so that the operator can monitor whole process all the time.

2- Technical Process--  Concrete Batch Plant For Sale



  • HZS series concrete batching plant consists of aggregate batching system, concrete mixing system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc.
  • All aggregates are fed into the aggregate batching machine by loader, and weighed in the weighing hopper or weighing belt. After weighing, they are transported to a hopper or a belt, and then the aggregates are transported to the mixer for mixing.
  • Cement is conveyed into the cement weighing hopper by screw conveyor for weighing, after weighing, cement is poured into mixer.
  • Water is pumped into water weighing hopper by water pump. After weighing, water is sent into the mixer.
  • After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce concrete.



3-Advantage--  Concrete Batch Plant For Sale

  1. Stability from national standard structural steel.
  2. Efficiency from twin shaft mixer and short cycle time.
  3. Reliability from famous brand components.
  4.  Quality from accurate weighing.
  5. Flexibility from modular design.





  1.  Easy to installation-uninstallation and operating.
  2. Quick to produce from our own specially trained engineers.
  3.   Easy to move from compact structure.
  4. Easy to maintain from the best service and parts support.
  5.  Easy to clean from mixer with high-pressure automatic cleaning system.



  1.  Less land occupation costs.
  2.  Less transportation costs.
  3.  Low noise and dust emissions.
  4. Less energy consumption costs.
  5.  Fast return on investment.



 4-Technical Parameter--  Concrete Batch Plant For Sale





MODELHZS50
Capacity50 m³/h
Twin Shaft MixerJS1000
Mixer Volume 1m³
Mixer Power30 kW
Max. Aggregate Size(broken stone/pebble)60 / 80 mm
Loading Type of Aggregate to the MixerSkip Hopper
Aggregate Silo Capacity4.5 m³*4
Aggregate Weighing3000 kg ±2%
Cement Weighing500 kg ±1%
Water Weighing300 kg ±1%
Additive Weighing30 kg ±1%
Control SystemFull-automatic / Semi-automatic / manual
Discharging Height3800 mm (for customers choice)
Total Power70 kW
Total WeightAbout 18 Tons
Overall Dimension(at work)(L*W*H)18200 mm *10000 mm *19400 mm
Cement ScrewΦ219 mm
Cement Silo(optional)Bolted Type, 50 Tons / 100 Tons



  1-Indtroduction--  Concrete Batch Plant For Sale

Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.

  • Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.
  • Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India Iran, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.









2-Our Team --  Concrete Batch Plant For Sale



Zhengzhou Sanqgroup Machinery & Equipment Co., Ltd. is a production and sales enterprise, the company's business is flourishing now, mainly due to our energetic team.

  • Technology team:
Technology team is consisted of 11 persons, 3 are senior engineers, 8 are engineers. The average age is about 35 years old. 2 are doctor degree, 4 are master degree and 5 are bachelor degree.
  • Sales team:
Sales team is composed of 15 persons, 10 for English market, 5 for Russian market. 80% is Bachelor and 20% is junior college. The average age is 26 years old. It is a highly educated, high-quality, young and energetic team.





  • Production Team:
Workers are divided into general worker and skilled worker. All skilled workers have some certificates for technical proficiency with work experience from 2 to 20 years. All general workers will be strictly trained by skilled worker after recruit according to their post for 2-3 weeks and then can operate after passing examination.

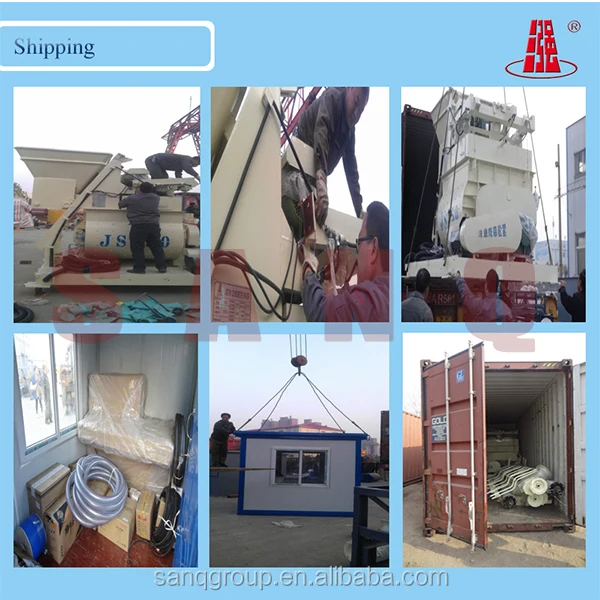

Packaging & Shipping

 Export standard container-20GP or 40GP, 40HQ,FR container in bulk, the spare parts in wooden or iron case according to the size and weight.




Certifications











Our Services



1-after-sales service--  Concrete Batch Plant For Sale

SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.

  • 24 hours on line sercvice
  • Regular after-sale visit
  • All after -sale service problem will be solved in 72 hours
  • Accessories gloabally supply
  • Lifetime technique suport
  • Enginnerserve overseas avaiable
2-Spare Parts and Service-- Concrete Batch Plant For Sale
Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.
SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
