Quick Details

  • Condition: New
  • Power Type: Diesel
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: SANQ
  • Model Number: HZS60
  • Power(W): 100kw
  • Dimension(L*W*H): 25000 mm *10000 mm *19400 mm
  • Weight: 45T
  • Certification: ISO9001:2008, CE, BV, GOST
  • Warranty: 1.5 years from the date of commissioning of the plant
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 60 m3/h
  • Twin Shaft Mixer: JS1000
  • Mixer Volume: 1 m3
  • Mixer Power: 18.5 kW*2
  • Max. Aggregate Size(broken stone/pebble): 60 / 80 mm
  • Loading Type of Aggregate to the Mixer: Conveying Belt
  • Aggregate Silo Capacity: 9 m3 *4
  • Aggregate Weighing: 4000 kg ±2%
  • Cement Weighing: 600 kg ±1%
  • Fly Ash Weighing: 400 kg ±1%

Packaging & Delivery

Packaging Details 2*40HQ containers according to the model size, wooden-box with the size of 60cm*60cm*60cm will be used for small items like bolt, nult, screw etc.
Delivery Time 15-20 working days after receiving your advanced payment

Cheap Low Cost hzs60 concrete batching plant 60m3

Product Description

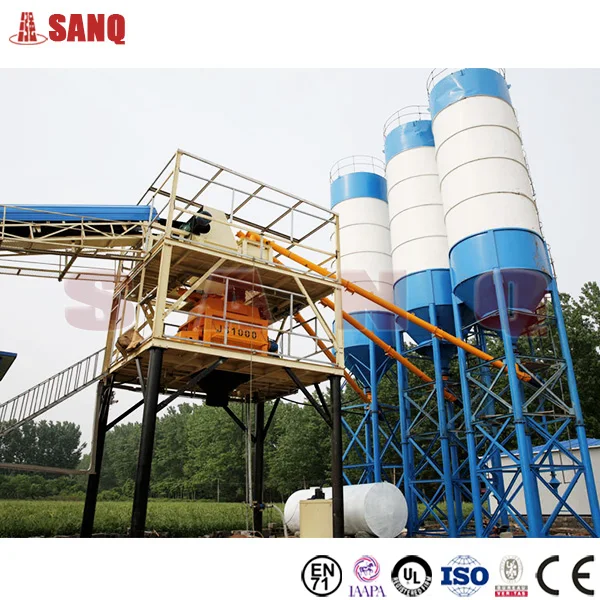

Introduction-- hzs60 concrete batching plant

HZS concrete batching plant 60m3 is also named ready mix concrete plant, mainly composed of twin shaft mixer, material weighing system, conveying system, material storage system, control system and steel structure.

  • It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
  • HZS series stationary concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast concrete plants, etc. It is an ideal choice for producing commercial concrete.
  • HZS has two feeding ways. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is often used for higher than 60m3 per hour output production.
  • For export, we adopt full automatic control system for our stationary concrete mixing plant. It is PC+PLC control, which can vividly display the production process on the screen, so that the operator can monitor whole process all the time.

Technical Process

HZS series concrete batching plant consists of aggregate batching system, concrete mixing system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc.

  • All aggregates are fed into the aggregate batching machine by loader, and weighed in the weighing hopper or weighing belt. After weighing, they are transported to a hopper or a belt, and then the aggregates are transported to the mixer for mixing.
  • Cement is conveyed into the cement weighing hopper by screw conveyor for weighing, after weighing, cement is poured into mixer.
  • Water is pumped into water weighing hopper by water pump. After weighing, water is sent into the mixer.
  • After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce concrete.
Parts Of Design Drawing




Advantages:

  • Stability from national standard structural steel.
  • Efficiency from twin shaft mixer and short cycle time.
  • Reliability from famous brand components.
  • Quality from accurate weighing.
  • Easy to installation-uninstallation and operating.



Dear Sir/Madam,

Thanks for interest in my product.

The OFFER is as follow:

1. Quotation

   CommodityHZS25 Concrete Batching Plant

   FOB. Qingdao Port, China, Price: USD 22,000-40,000 (According to configuration )

   Shipping Container: 2*40HQ

    Payment: 30% T/T in advance, 70% T/T before shipment or Letter of Credit at sight.
   Warranty: 1.5 years from the date of commissioning of the plant.
   Delivery Time: 3-7 days after receiving advanced payment

2. Parameter



MODELHZS60
Capacity60 m³/h
Twin Shaft MixerJS1000
Mixer Volume 1 m³
Mixer Power18.5 KW*2
Max. Aggregate Size(broken stone/pebble)60 / 80 mm
Loading Type of Aggregate to the MixerSkip Hopper
Aggregate Silo Capacity9 m³*4
Aggregate Weighing4000 kg ±2%
Cement Weighing600 kg ±1%
Water Weighing300 kg ±1%
Fly Ash Weighing400 kg ±1%
Additive Weighing
30 kg ±1%
Control SystemFull-automatic / Semi-automatic / manual
Discharging Height3800 mm (for customers choice)
Total Power100 kW
Total WeightAbout 8 Tons
Overall Dimension(at work)(L*W*H)25000 mm *10000 mm *19400 mm
Cement ScrewΦ219 mm / Φ273mm
Cement Silo(optional)Bolted Type, 50 Tons / 100 Tons/ 200 Tons



Successful Case



Our Services

1-After-sales service-- hzs60 concrete batching plant

SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.

  • 24 hours on line sercvice
  • Regular after-sale visit
  • All after -sale service problem will be solved in 72 hours
  • Accessories gloabally supply
  • Lifetime technique suport
  • Enginnerserve overseas avaiable
2-Spare Parts and Service
Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.
SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
About Sanqgroup

Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.

  • Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.
  • Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India Iran, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.
