Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: SANQ
  • Model Number: YHZS75
  • Power(W): 70kw
  • Dimension(L*W*H): 18850*4150*8079mm
  • Weight: 19tons
  • Certification: CE
  • Warranty: 12month
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Mobile Concrete batching plant for sale
  • Twin Shaft Mixer: JS1500
  • capacity: 75 m3/h
  • Cement Screw Conveyor: LSY273
  • Concrete Batch Machine:: PLD1600-2
  • Mixer Volume: 1.5 m3
  • Mixer Power: 30kw*2
  • Aggregate Storage Hopper: 5m3 * 4
  • Aggregate Weighing: 4000kg±2%
  • Keyword: batching plant for sale

Packaging & Delivery

Packaging Details Standard Export Packing
Delivery Time Shipped in 30 days after payment

SANQ YHZS75 Factory Price Mobile Concrete batching plant for sale

Product Description

1-Introduction

  • YHZS series mobile concrete mixing plant is a movable equipment, which is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc.
  • YHZS series mobile concrete mixing plant has two different structures, one is hauling type, and the other is modular type.
  • Hauling type mobile concrete mix plant adopts the semi-pulling design. With running system and standard traction pin, YHZS series hauling type mobile concrete mix plant can be dragged by a tractor, which enables convenient and quick movement and installation without foundation and debugging. It takes only one day from installation to operation.
  • Modular type mobile mixing plant adopts modular design without foundation and debugging, which enables convenient and quick installation. It takes only three to five days from installation to operation. For convenient long distance transportation, the mobile ready mixed concrete plant can be divided into several standard modules, and then be packed into containers.

2-Feature

  • Special Designed Compact Structure.
  • Hauling System for Easy Move.
  •  Fast and Easy Installation and Dis-assembly.
  • Twin Shaft Forced Type Concrete Mixer
  • Operated Manually, Semi-automatically and Full-automatically.
  • Comprehensive Function (unique storage ratio, self compensation of aggregates drop, alarming of over scale, online modifying formula, etc.)



3-Technical Parameter



ModelYHZS75
Productivity75 m³/h
Twin Shaft Mixer JS1500
Mixer Volume 1.5 m³
Mixer Power30*2kw
Max. Aggregate Size(broken stone/pebble)60/80mm
Loading Type of Aggregate to the MixerConveyor Belt
Aggregate Storage Hopper5m³  * 4
Aggregate Weighing4000kg±2%
Cement Weighing600kg±1%
Water Weighing 400kg±1%
Additive Weighing30kg±1%
Control ModeFull-automatic / Semi-automatic / manual
Discharge Height2800mm
Total Power96kw
Total Weight20000kg (except cement silo and screw)
Site Size (L * W* H) (at work)20000 mm * 4200 mm * 8300mm
Cement ScrewLSY219
Cement siloBolted Type: 50T/100T/200T




Accessories



Packaging & Shipping



Export standard container-20GP or 40GP, 40HQ,FR container in bulk, the spare parts in wooden or iron case according to the size and weight.

HZS75 75m3    Concrete Batching Plant  Haved Exported To Russia





Our Russian Customer



General manager Vicky Guo ,

Russian manager

Our Russian Customer

Company Information

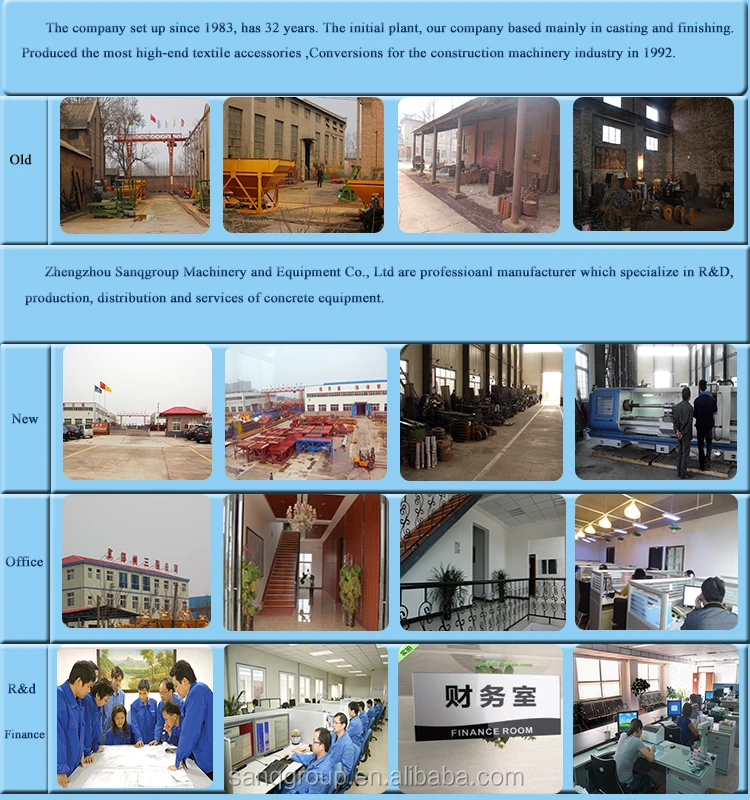

1-Indtroduction

  • Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.
  • Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.
  • Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India Iran, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.
2-Our History

3-Our Team

Zhengzhou Sanqgroup Machinery & Equipment Co., Ltd. is a production and sales enterprise, the company's business is flourishing now, mainly due to our energetic team.

  • Production Team:

Workers are divided into general worker and skilled worker. All skilled workers have some certificates for technical proficiency with work experience from 2 to 20 years. All general workers will be strictly trained by skilled worker after recruit according to their post for 2-3 weeks and then can operate after passing examination.

4-Another HZS Series Concete Batching Plant






Certifications

Our Services

1-After-Sales Service-- Mobile Concrete Batching Plant

SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.

  • 24 hours on line sercvice
  • Regular after-sale visit
  • All after -sale service problem will be solved in 72 hours
  • Accessories gloabally supply
  • Lifetime technique suport
  • Enginnerserve overseas avaiable
2-Spare Parts and Service--  Mobile Concrete Batching Plant
Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.
SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
FAQ

Any other questions, feel free to contact with us, your inquiry will be highly appreciated. Thank you !
