Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: SANQ
  • Model Number: HZS180
  • Power(W): 190kw
  • Dimension(L*W*H): 45000x17000x20000mm
  • Weight: 80 Tons
  • Certification: ISO9001:2008
  • Warranty: 12 Months after Installation
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Control system: Automatic Computer Control
  • Discharge height: 3800mm or (custom design)
  • Capacity: 180m3/h
  • Twin shaft mixer: SICOMA MAQ3000/SANQJS3000
  • Mixer volume: 3m3
  • Mixer power: 55kw*2
  • Loading type of aggregate to mixer: Conveying belt
  • Aggregate silo capacity: 18m3x 4
  • Color: Request
  • Product name: Ready-mixed Concrete Mixing Plant

Packaging & Delivery

Packaging Details Standard Export Packing Containers
Delivery Time Shipped in 10-30 days after payment
Related Products

HZS180 Concrete Batch Plant 25-180 m3/h Concrete Plant Concrete Mixing Plant With Factory Price



Product Description

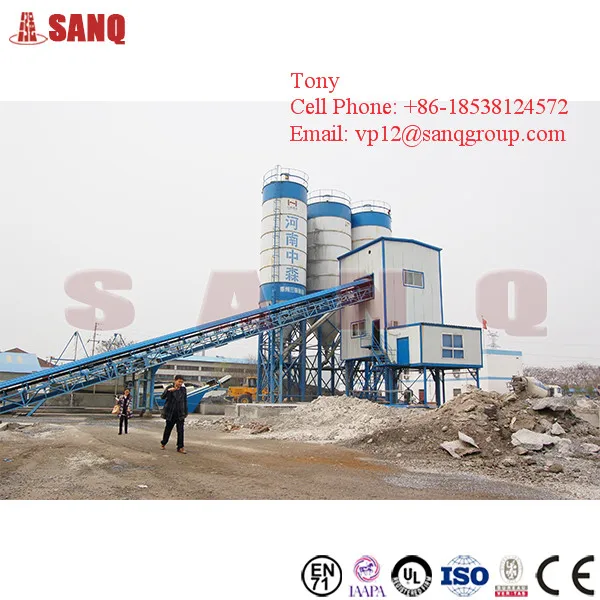

   HZS180 Concrete Batching Plant is also named concrete mixing plant, mainly composed of JS3000 twin shaft mixer, PLD4800 concrete batching machine , material weighing system, conveying system, control system and steel structure. HZS180 concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast concrete plants, etc.



1. Hopper type concrete batching plant

MODEL

HZS25

HZS35

HZS50

HZS75

Capacity

25 m³/h

35 m³/h

50 m³/h

75 m³/h

Twin Shaft Mixer

JS500

JS750

JS1000

JS1500

Mixer Volume

0.5 m³

0.75 m³

1 m³

1.5 m³

Mixer Power

18.5 kW

30 kW

30 kW

30 kW×2

Max. Aggregate Size(broken stone/pebble)

60/80mm

Loading Type of Aggregate to the Mixer

Skip Hopper

Aggregate Silo Capacity

2.5 m³ ×3

2.5 m³ ×3

4.5 m³ ×4

12 m³ ×4

Aggregate Weighing

1500 kg ±2%

2250 kg ±2%

3000 kg ±2%

4000 kg ±2%

Cement Weighing

450 kg ±1%

450 kg ±1%

500 kg ±1%

600 kg ±1%

Water Weighing

300 kg ±1%

300 kg ±1%

300 kg ±1%

300 kg ±1%

Additive Weighing

30 kg ±1%

30 kg ±1%

30 kg ±1%

30 kg ±1%

Control System

Full-automatic / Semi-automatic / Manual

Discharging Height

3800 mm (for customers choice)

Total Power

60 kW

65 kW

70 kW

85 kW

Total Weight (approximate)

8 Tons

12 Tons

18 Tons

35 Tons

Overall Dimension(at work)(L×W×H)

15000 ×8000 × 12000 mm

15200 × 8500 × 15400 mm

18200 × 10000 × 19400 mm

19200 × 10000 × 19400 mm

Cement Screw

Φ219 mm / Φ273 mm

Cement Silo(optional)

Bolted Type, 50 Tons / 100 Tons / 200 Tons





2. Belt conveyor type concrete batching plant

MODEL

HZS60

HZS90

HZS120

HZS180

Capacity

60 m³/h

90 m³/h

120 m³/h

150 m³/h

Twin Shaft Mixer

JS1000

JS1500

JS2000

JS3000

Mixer Volume

1 m³

1.5 m³

2 m³

3 m³

Mixer Power

18.5 kW×2

30 kW×2

37 kW×2

55 kW×2

Max. Aggregate Size(broken stone/pebble)

60 / 80 mm

Loading Type of Aggregate to the Mixer

Conveying Belt

Aggregate Silo Capacity

9 m³ ×4

15 m³ ×4

18 m³ ×4

20 m³ ×4

Aggregate Weighing

4000 kg ±2%

4000 kg ±2%

4000 kg ±2%

6000 kg ±2%

Cement Weighing

600 kg ±1%

700 kg ±1%

1000 kg ±1%

1500 kg ±1%

Fly Ash Weighing

400 kg ±1%

400 kg ±1%

400 kg ±1%

600 kg ±1%

Water Weighing

300 kg ±1%

300 kg ±1%

300 kg ±1%

500 kg ±1%

Additive Weighing

30 kg ±1%

40 kg ±1%

50 kg ±1%

50 kg ±1%

Control System

Full-automatic / Semi-automatic / Manual

Discharging Height

3800 mm (for customers choice)

Total Power

100 kW

110 kW

160 kW

190 kW

Total Weight (approximate)

45 Tons

64 Tons

70 Tons

80 Tons

Overall Dimension (at work) (L×W×H)

25000 × 10000 × 19400 mm

38500 × 12000 × 19400 mm

41600 × 12700 × 19400 mm

45000 × 17000 × 20000 mm

Cement Screw

Φ219 mm / Φ273 mm

Cement Silo(optional)

Bolted Type, 50 Tons / 100 Tons / 200 Tons

Successful Case

Detailed Images





JS3000 Concrete Mixer

JS Series Twin Shaft Concrete Mixer is usually applied in concrete batching plants as the main mixer. It has stronger mixing effect and higher mixing efficiency than self-falling concrete mixer.



PLD4800 Concrete Batching Machine

PLD Series Concrete Batching Machine is matched to concrete batching plant, which includes aggregate supply system, weighing system and electrical control system.





Cement Silo

We provides bolted type and welded type cement silos in various capacities and dimensions . 50 ton, 100 ton, 200 ton, 300 ton etc.



Control System

Sanqgroup Programmable Controller can control the production process with high reliability and stability. It can control the discharging and mixing and automatic control of the whole concrete production process.



Packaging & Shipping


Certifications



Our Services

 1-After-Sales Service

  • 24 hours on line service
  • Regular after-sale visit
  • All after -sale service problem will be solved in 72 hours
  • Accessories globally supply
  • Lifetime technique support
  • Engineer serve overseas available
